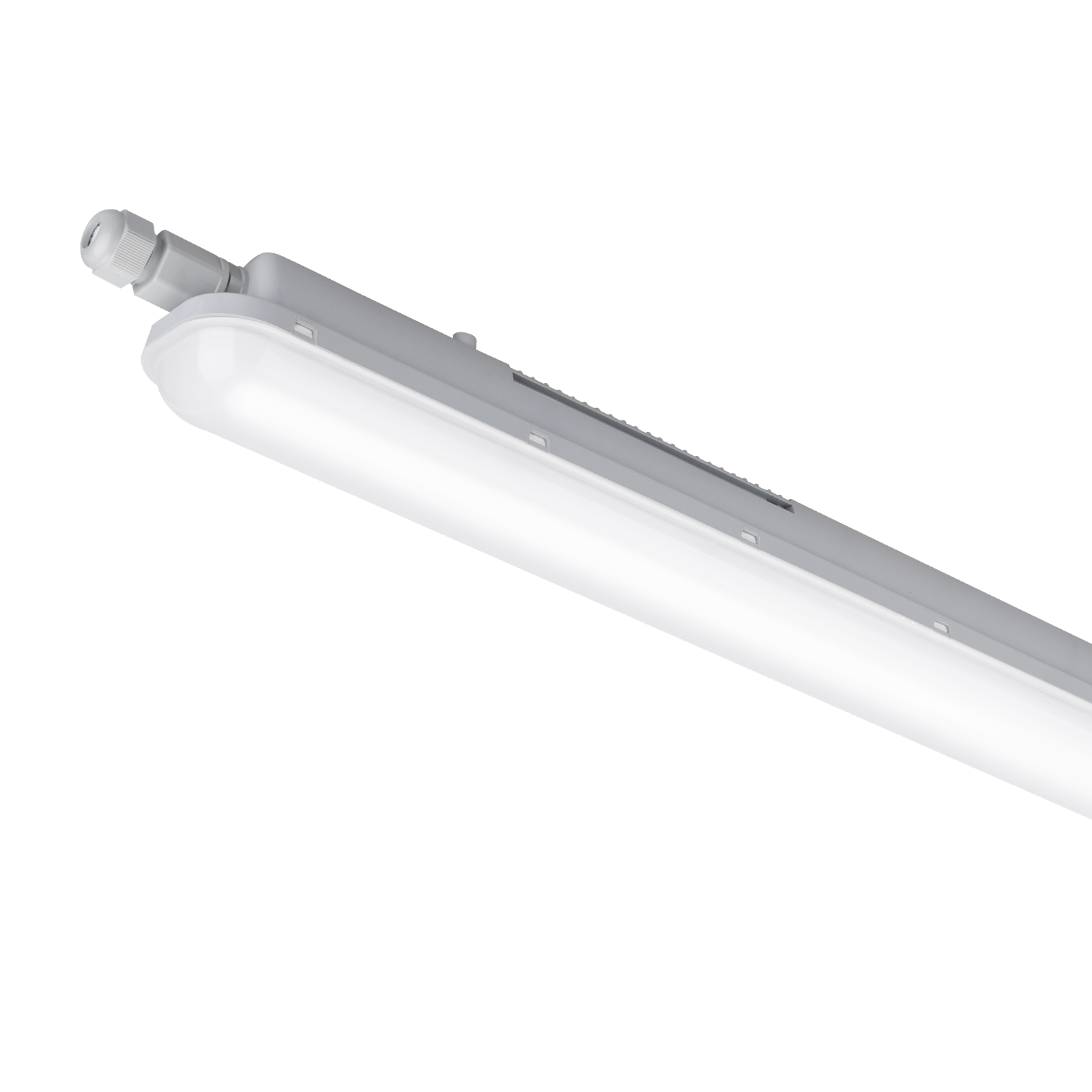

NTP20A
IP65 weatherproof batten, Quick Wiring Waterproof Gland, 0.6m~1.5m
High-brightness LED chips, efficacy up to 150lm/W
Polycarbonate base and diffuser

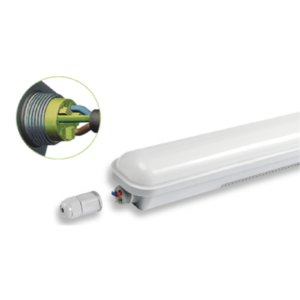

Tool-less fast wiring on both sides, allowing linear connection
Sensor variant with remote control available
| Code | NTP120C-0.6m | NTP120C-1.2m | NTP120C-1.5m |
|---|---|---|---|
| Dimension(mm) | 600x70x64 | 1200x70x64 | 1500x70x64 |
| Watt(W) | 20W | 40W | 50W |
| Rated Input Voltage | AC220-240V | AC220-240V | AC220-240V |
| Light Source | 2835 | 2835 | 2835 |
| SDCM | <6 | <6 | <6 |
| CCT(K) | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K |
| CCT Selection DIP Switch | YES | YES | YES |
| Luminous Flux (lm) | 2000 | 4000 | 5000 |
| CRI | 80 | 80 | 80 |
| Beam Angle (°) | 120° | 120° | 120° |
| LED Driver | Driver built-in | Driver built-in | Driver built-in |
| Dimming Option | YES | YES | YES |
| Sensor | YES | YES | YES |
| Emergency Kits | NO | NO | NO |
| Electrical Class | Class II | Class II | Class II |
| Ingress Protection(IP Rating) | IP65 | IP65 | IP65 |
| Impact Resistance(IK Rating) | IK08 | IK08 | IK08 |
| Product Finishing | Opal Diffuser, Grey Base | Opal Diffuser, Grey Base | Opal Diffuser, Grey Base |
| Optics Material | PC | PC | PC |
| Housing Material | ABS | ABS | ABS |
| Lifetime (hr) | 30,000h | 30,000h | 30,000h |
| Glow wire test (°C) | 650°C | 650°C | 650°C |
| Operating Temp.(°C) | -20°C~45°C | -20°C~45°C | -20°C~45°C |
| Storage Temp.(°C) | -20°C~65°C | -20°C~65°C | -20°C~65°C |

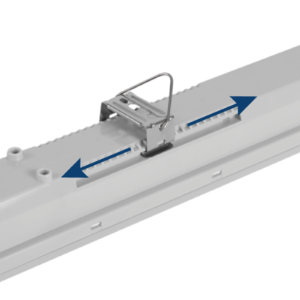

| Installation | Suspended mounting and surface mounting | Suspended mounting and surface mounting | Suspended mounting and surface mounting |
