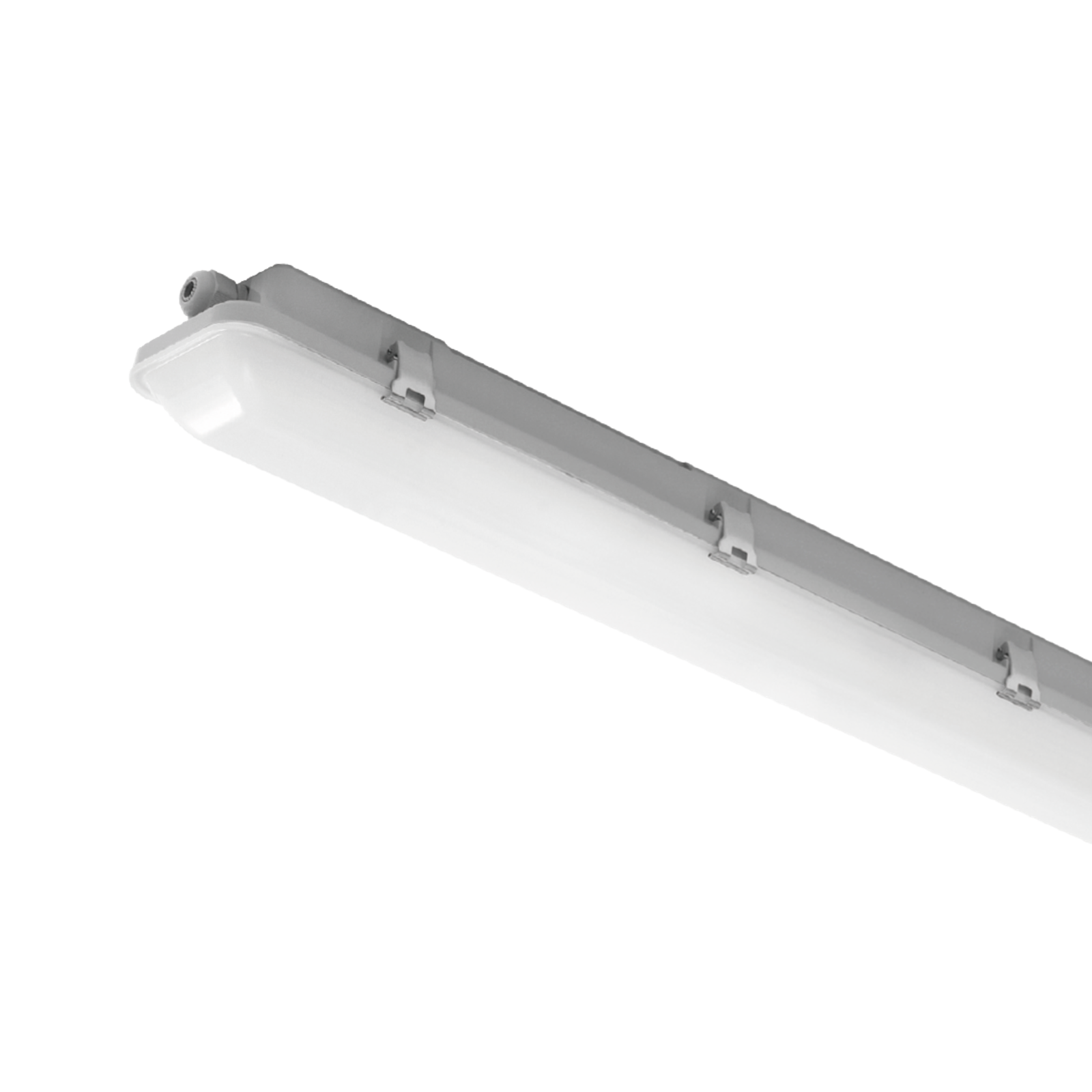

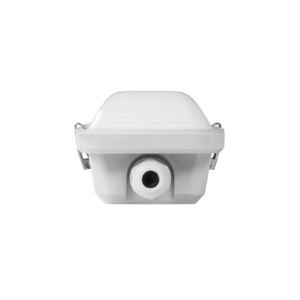

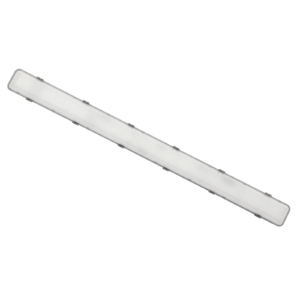

NTP116
IP65 weatherproof batten, Square-ended Shape, CCT & Wattage Selectable, 2ft~6ft
High-brightness LED chips, efficacy up to 140lm/W
CCT and power switch option available
Polycarbonate base and diffuser, stainless steel clips
Plug-and-play sensor and EM kit for option
| Code | NTP116-2ft | NTP116-4ft | NTP116-5ft | NTP116-6ft |
|---|---|---|---|---|
| Dimension(mm) | 600x100x75 | 1200x100x75 | 1500x100x75 | 1800x100x75 |
| Watt(W) | 20W | 40W | 60W | 70W |
| Rated Input Voltage | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
| Light Source | 2835 | 2835 | 2835 | 2835 |
| SDCM | <6 | <6 | <6 | <6 |
| CCT(K) | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K |
| CCT Selection DIP Switch | YES | YES | YES | YES |
| Luminous Flux (lm) | 2800 | 5600 | 8400 | 9800 |
| CRI | 80 | 80 | 80 | 80 |
| Beam Angle (°) | 120° | 120° | 120° | 120° |
| LED Driver | Driver built-in | Driver built-in | Driver built-in | Driver built-in |
| Dimming Option | YES | YES | YES | YES |
| Sensor | YES | YES | YES | YES |
| Emergency Kits | YES | YES | YES | YES |
| Electrical Class | Class I | Class I | Class I | Class I |
| Ingress Protection(IP Rating) | IP65 | IP65 | IP65 | IP65 |
| Impact Resistance(IK Rating) | IK10 | IK10 | IK10 | IK10 |
| Product Finishing | Opal Diffuser, Grey Base | Opal Diffuser, Grey Base | Opal Diffuser, Grey Base | Opal Diffuser, Grey Base |
| Optics Material | PC | PC | PC | PC |
| Housing Material | PC | PC | PC | PC |
| Lifetime (hr) | 50,000h | 50,000h | 50,000h | 50,000h |
| Glow wire test (°C) | 650°C | 650°C | 650°C | 650°C |
| Operating Temp.(°C) | -20°C~45°C | -20°C~45°C | -20°C~45°C | -20°C~45°C |
| Storage Temp.(°C) | -20°C~65°C | -20°C~65°C | -20°C~65°C | -20°C~65°C |
| Installation | Suspended mounting and surface mounting, BESA available | Suspended mounting and surface mounting, BESA available | Suspended mounting and surface mounting, BESA available | Suspended mounting and surface mounting, BESA available |
