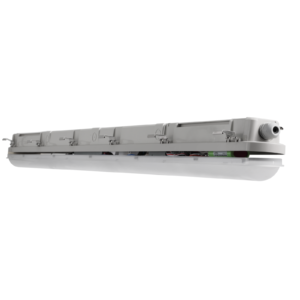

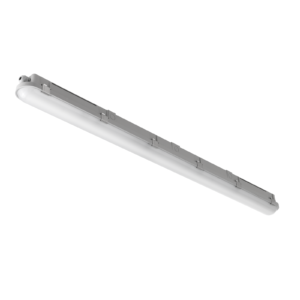

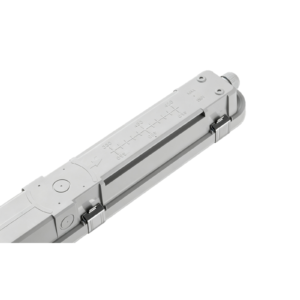

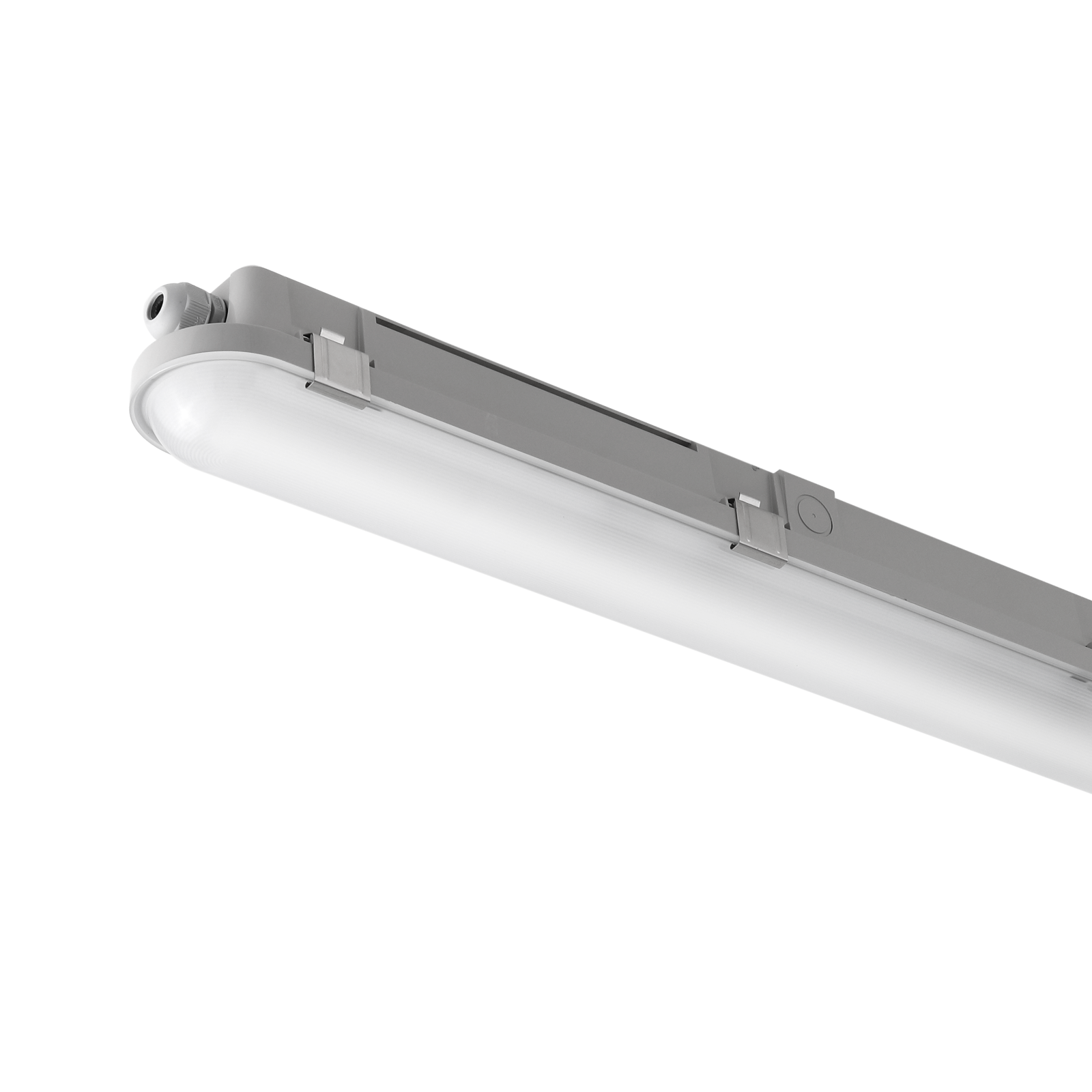

NTP111
IP65 weatherproof batten, Quick Plug-and-play Accessories, CCT & Wattage Selectable, 2ft~6ft
High-brightness LED chips, efficacy up to 140lm/W
CCT and power switch option available
Polycarbonate base and diffuser, stainless steel clips
Plug-and-play sensor and EM kit for option
| Code | NTP111-2ft | NTP111-4ft | NTP111-5ft | NTP111-6ft |
|---|---|---|---|---|
| Dimension(mm) | 580x75x80 | 1180x75x80 | 1480x75x80 | 1780x75x80 |
| Watt(W) | 18W | 34W | 48W | 60W |
| Rated Input Voltage | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
| Light Source | 2835 | 2835 | 2835 | 2835 |
| SDCM | <6 | <6 | <6 | <6 |
| CCT(K) | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K |
| CCT Selection DIP Switch | YES | YES | YES | YES |
| Luminous Flux (lm) | 2520 | 4760 | 6720 | 6720 |
| CRI | 80 | 80 | 80 | 80 |
| Beam Angle (°) | 120° | 120° | 120° | 120° |
| LED Driver | Driver built-in | Driver built-in | Driver built-in | Driver built-in |
| Dimming Option | YES | YES | YES | YES |
| Sensor | YES | YES | YES | YES |
| Emergency Kits | YES | YES | YES | YES |
| Electrical Class | Class I | Class I | Class I | Class I |
| Ingress Protection(IP Rating) | IP65 | IP65 | IP65 | IP65 |
| Impact Resistance(IK Rating) | IK08 | IK08 | IK08 | IK08 |
| Product Finishing | Opal Diffuser, Grey Base | Opal Diffuser, Grey Base | Opal Diffuser, Grey Base | Opal Diffuser, Grey Base |
| Optics Material | PC | PC | PC | PC |
| Housing Material | PC | PC | PC | PC |
| Lifetime (hr) | 50,000h | 50,000h | 50,000h | 50,000h |
| Glow wire test (°C) | 650°C | 650°C | 650°C | 650°C |
| Operating Temp.(°C) | -20°C~45°C | -20°C~45°C | -20°C~45°C | -20°C~45°C |
| Storage Temp.(°C) | -20°C~65°C | -20°C~65°C | -20°C~65°C | -20°C~65°C |
| Installation | Suspended mounting and surface mounting, BESA available | Suspended mounting and surface mounting, BESA available | Suspended mounting and surface mounting, BESA available | Suspended mounting and surface mounting, BESA available |
