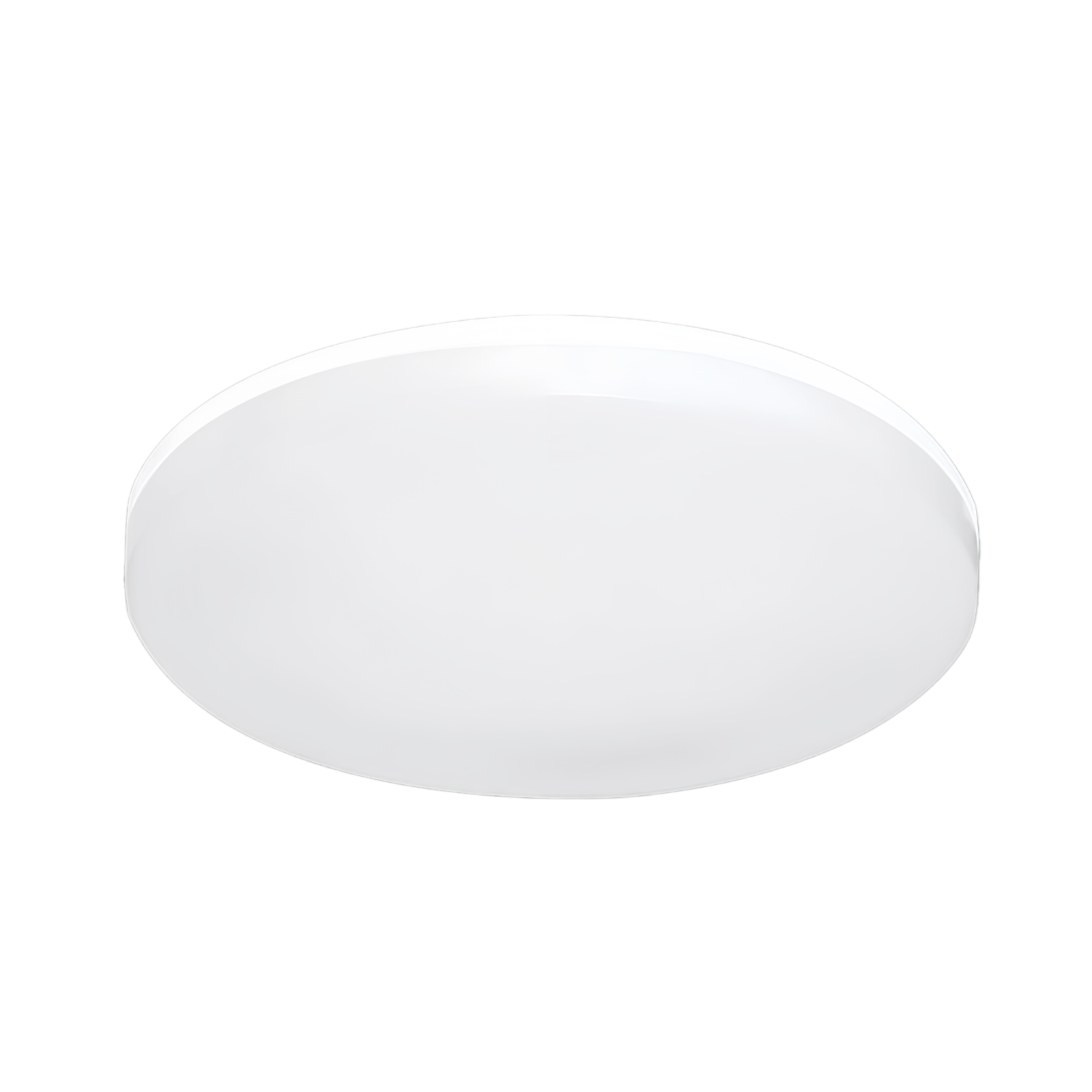

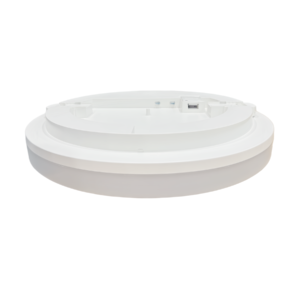

NCL129R

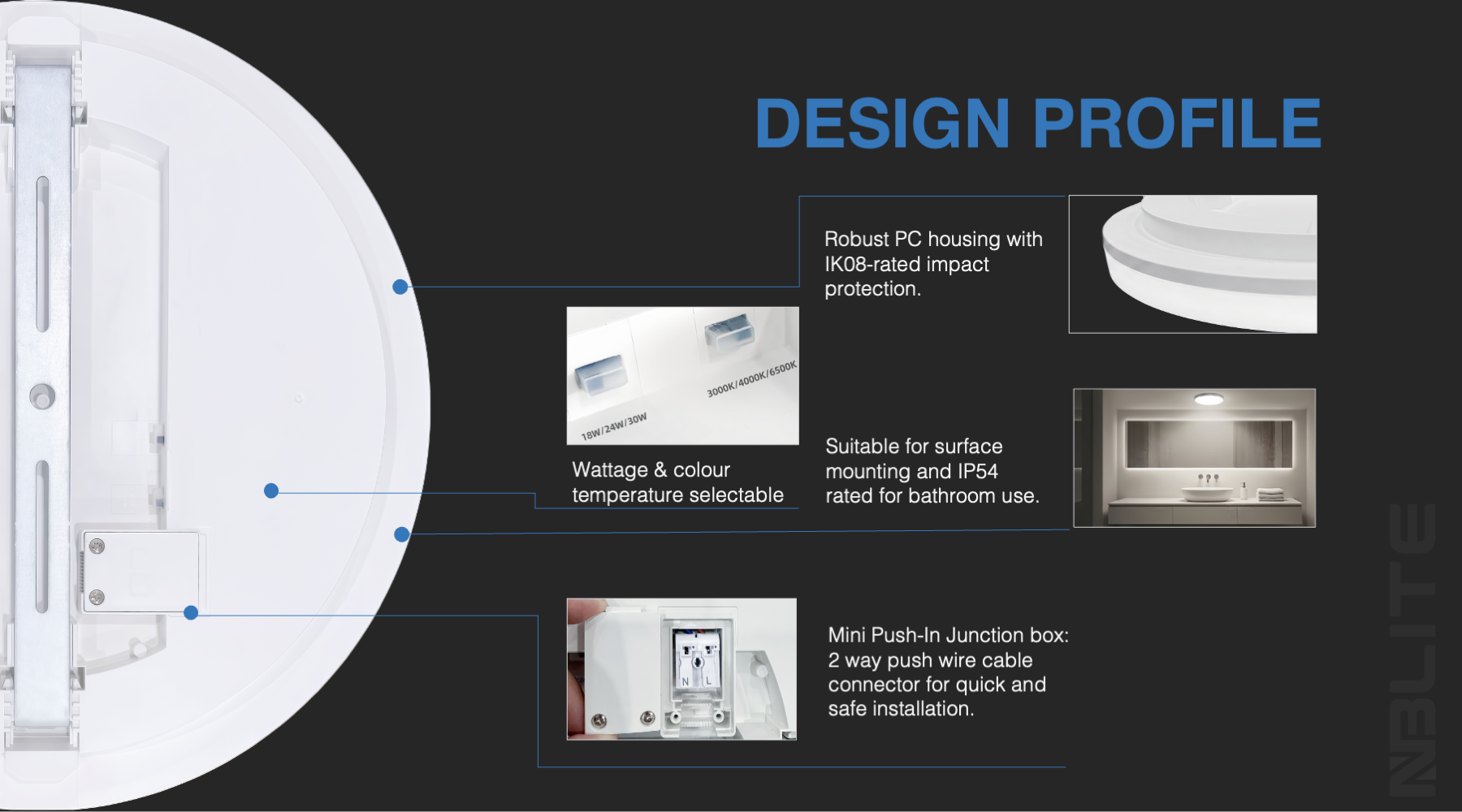

LED ceiling Light with celectable CCT & wattage. IP54-rated design, ideal for bathroom and humid environment applications. Square version available: NCL114S.
High-brightness LED chips, efficacy up to 100lm/W

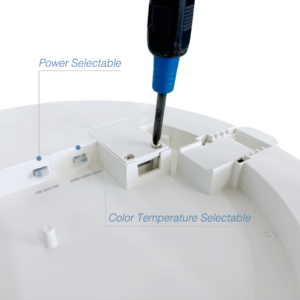

CCT and power switch option available
Polycarbonate body and diffuser

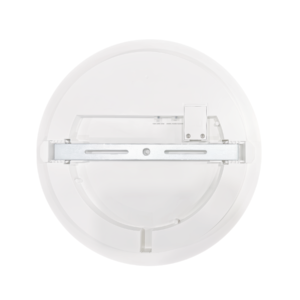

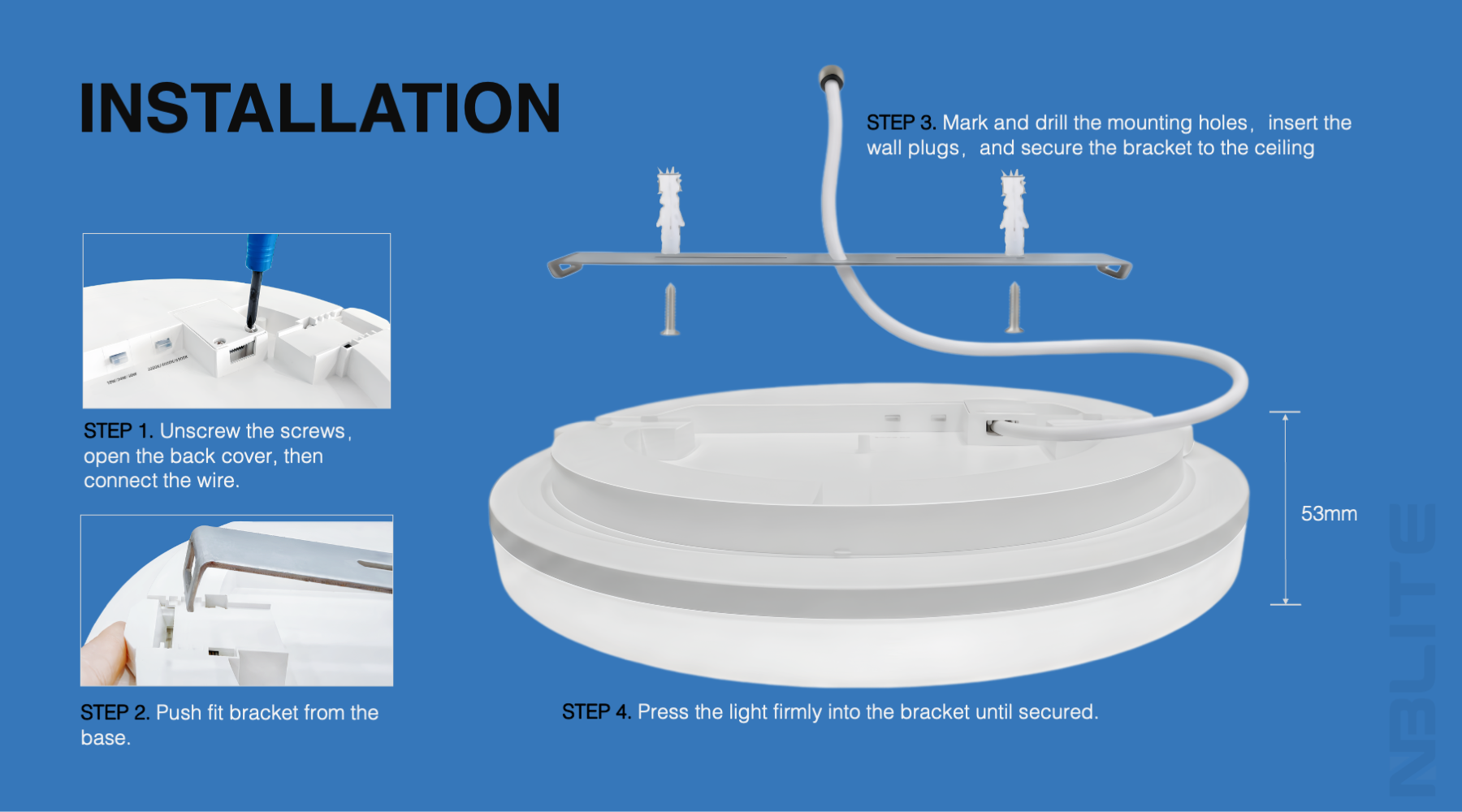

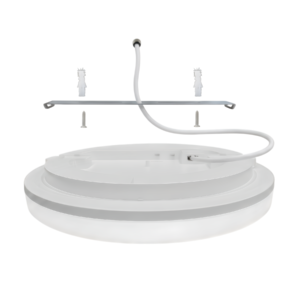

Speedfit bracket for easy installation

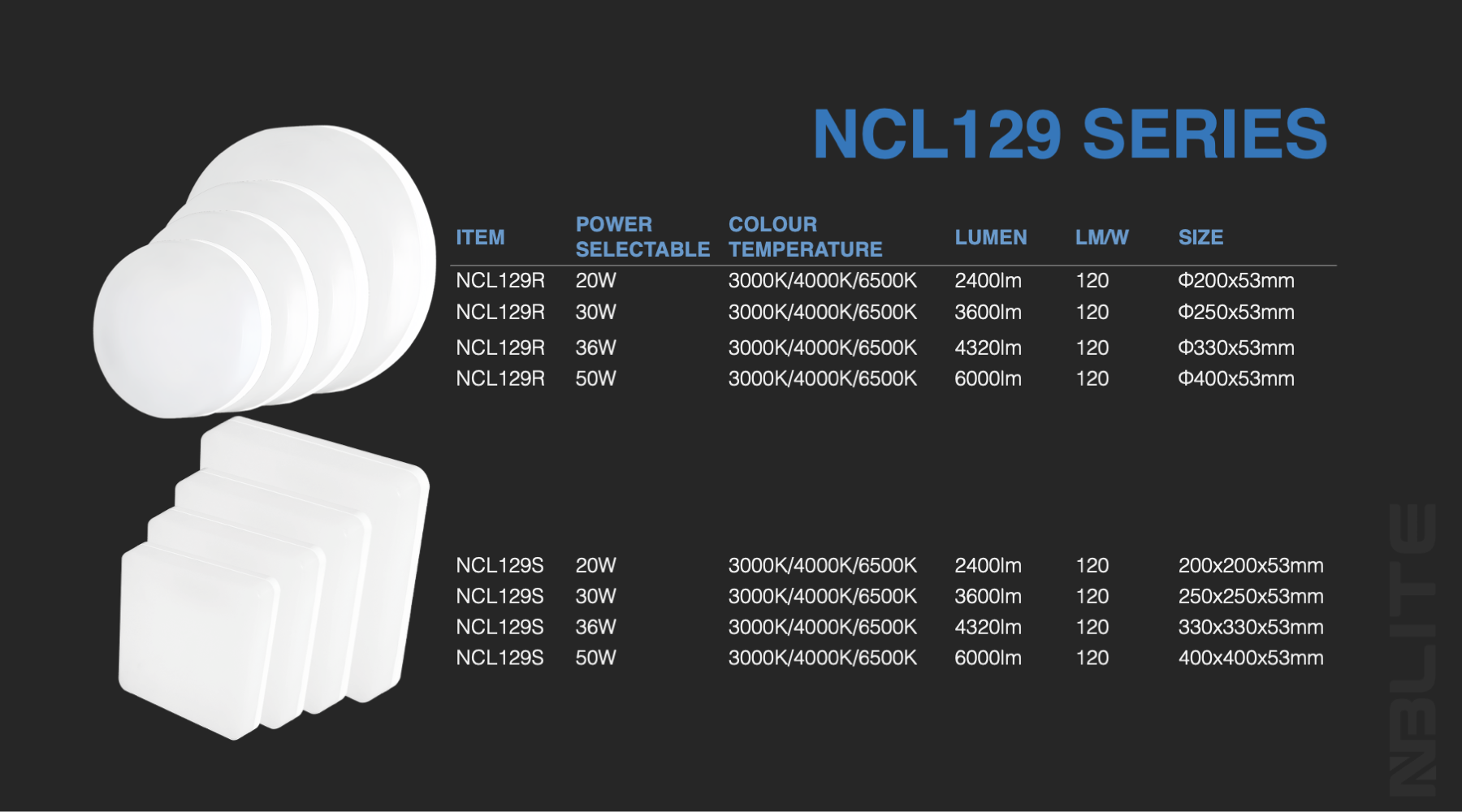

| Code | NCL129R-20W | NCL129R-30W | NCL129R-36W | NCL129R-50W |
|---|---|---|---|---|
| Dimension(mm) | Φ200x53mm | Φ250x53mm | Φ330x53mm | Φ400x53mm |
| Watt(W) | 20W | 30W | 36W | 50W |
| Rated Input Voltage | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
| Light Source | 2835 | 2835 | 2835 | 2835 |
| SDCM | <6 | <6 | <6 | <6 |
| CCT(K) | 3000K/ 4000K/ 6500K | 3000K/ 4000K/ 6500K | 3000K/ 4000K/ 6500K | 3000K/ 4000K/ 6500K |
| CCT Selection DIP Switch | YES | YES | YES | YES |
| Luminous Flux (lm) | 2400 | 3600 | 4320 | 6000 |
| CRI | 80 | 80 | 80 | 80 |
| Beam Angle (°) | 120° | 120° | 120° | 120° |
| LED Driver | Driver built-in | Driver built-in | Driver built-in | Driver built-in |
| Dimming Option | NO | NO | NO | NO |
| Sensor | NO | NO | NO | NO |
| Emergency Kits | NO | NO | NO | NO |
| Electrical Class | Class II | Class II | Class II | Class II |
| Ingress Protection(IP Rating) | IP54 | IP54 | IP54 | IP54 |
| Impact Resistance(IK Rating) | IK08 | IK08 | IK08 | IK08 |
| Product Finishing | White | White | White | White |
| Optics Material | PC | PC | PC | PC |
| Housing Material | PC | PC | PC | PC |
| Lifetime (hr) | 30,000h | 30,000h | 30,000h | 30,000h |
| Glow wire test (°C) | 650°C | 650°C | 650°C | 650°C |
| Operating Temp.(°C) | -20°C~40°C | -20°C~40°C | -20°C~40°C | -20°C~40°C |
| Storage Temp.(°C) | -20°C~65°C | -20°C~65°C | -20°C~65°C | -20°C~65°C |
| Installation | Surface Mounting | Surface Mounting | Surface Mounting | Surface Mounting |
